M_FUH

4K UHD Basic Digital Signage Display

  • - Commercial LCD panel, high brightness700nit, high saturation display
  • - Support 7X16H stable operation
  • - Commercial panels and industrial materials are selected for the machine design

Overview

Digital Menu Board, “Visual Cuisine”

Commercial LCD panel, high brightness, high saturation display

10009

Ordinary TV

Goodview Electronic Dining Card

Goodview Electronic Dining Card

10013

Play time >12H Store opening hours

Working life: ≥ 50,000 hours
The life cycle of 2,083 days working

Support 7X16H stable operation
Commercial panels and industrial materials are selected for the machine design

Horizontal, vertical or hoisting suits the personalized display of different stores

Multi-size and multi-series digital menu board in stores are suitablefor various catering industry application scenarios

10014

power-on automatically, default startup channel

There is no need to manually switch the menu, say goodbye to the TV startup screen, and free up manpower in stores

Slim Professional Display for Business (19)

Television | Manual switching, cumbersome and laborious

Slim Professional Display for Business (20)

Goodview commercial screen | One button startup, saving time and effort

Dynamic joint screen diversified menu display

10020

Multi-type stores include a variety of goods with different prices, headquarters cloud makes easy management

10021

New products | new product promotion

Dynamic call linkage, the menu moves randomly

10022

Desktop desktop screen, Upgrade your store's image

10023

Moveable A-Frame Application scenario

Store brand visual upgrade, instant goods to attract more customers

10024

Store Sign Cloud

Six advantages of cloud platform applications

The first self-developed cloud platform in China, featuring a seamless service experience for a steward, has six major advantages to help you overcome traditional store problems, achieve digital marketing upgrades for stores, and enhance business space brand operation capabilities

10025

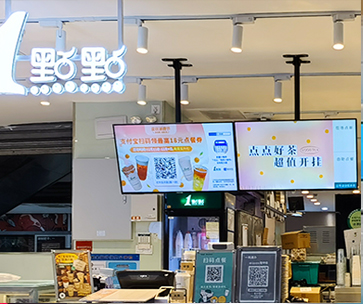

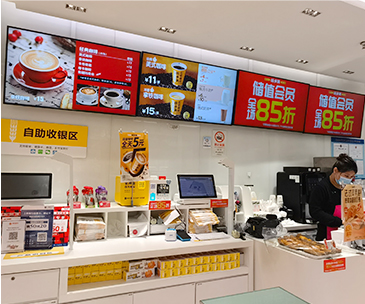

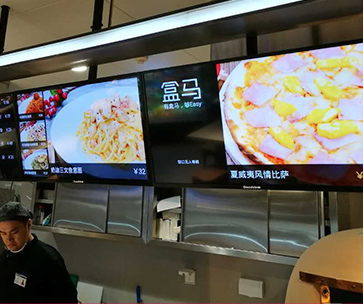

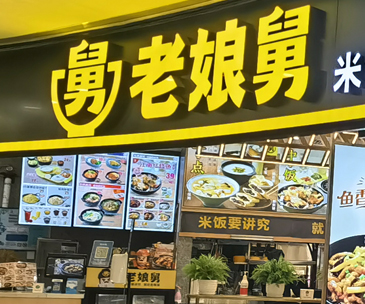

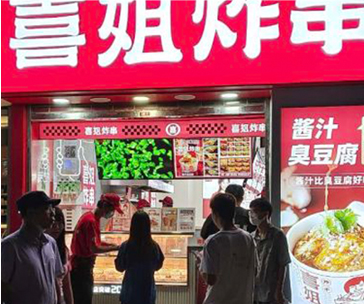

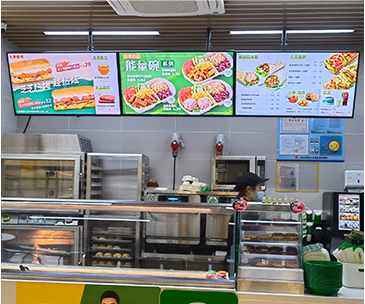

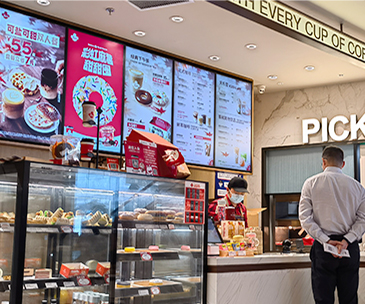

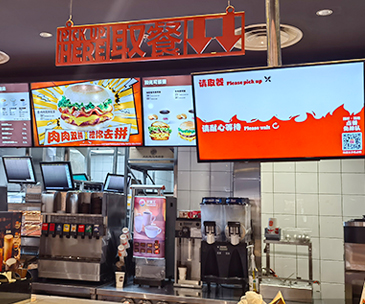

Industry application case

Specs

Display Panel

Size

43''

Resolution

3840 x 2160 (16:9)

Brightness

700 nit

Orientation

Landscape & Portrait

Contrast Ratio

5000:1

Response Time

6.5ms

Active Display Area (H x V)

941.184 ×529.416

Color Gamut

72%

Life Time

30,000 Hours

MainBoard

OS

Android 9.0

CPU

T972-SR Quad-Core A55 1.9GHz

GPU

Mali-G31 MP2 GPU

Memory

2GB

Storage

8GB

OPS Slot

N/A

Connectivity & Sound

Input

Video-HDMI x 3

Input

USB 2.0 x 2

Output

-

Output

-

WiFi & BT

2.4G802.11b/g/n/ac

External Control

Ethernet RJ45 IN (10M/100M)

Speaker

Build-in Speaker 2×2W 4Ω

Touch

Type

N/A

Glass

N/A

Touch Point

N/A

Touch Response Time

N/A

Touch Precision

N/A

Mechanical Specification

Dimension (mm)

Set-957×547×64.1

Dimension (mm)

Package-646×1063.1×165.2

Weight (kg)

Set-15.3

Weight (kg)

Package-18.2

VESA mount

400x200 &400x400

Bezel Width (mm)

4.9(T/B/L/R)

Power

Power supply

100-240V~ 50/60Hz

Power consumption

Max-94W

Power consumption

Sleep mode-≤0.5W

Operating condition

Temperature

0℃ - 40℃

Humidity

10% - 80%

SHOW LESS SPEC specs_btn

Display Panel

Size

50''

Resolution

3840 x 2160 (16:9)

Brightness

700 nit

Orientation

Landscape & Portrait

Contrast Ratio

5000:1

Response Time

9.5 ms

Active Display Area (H x V)

1095.84×616.41

Color Gamut

-

Life Time

30,000 Hours

MainBoard

OS

Android 9.0

CPU

T972-SR Quad-Core A55 1.9GHz

GPU

Mali-G31 MP2 GPU

Memory

2GB

Storage

8GB

OPS Slot

N/A

Connectivity & Sound

Input

Video-HDMI x 3

Input

USB 2.0 x 2

Output

-

WiFi & BT

2.4G802.11b/g/n/ac

External Control

Ethernet RJ45 IN (10M/100M)

Speaker

Build-in Speaker 2×2W 4Ω

Touch

Type

N/A

Glass

N/A

Touch Point

N/A

Touch Response Time

N/A

Touch Precision

N/A

Mechanical Specification

Dimension (mm)

Set-1115.6×636.2×46.6

Dimension (mm)

Package-764×1241×193.7

Weight (kg)

Set-16.2

Weight (kg)

Package-20.4

VESA mount

400x400

Bezel Width (mm)

9.88(T/B/L/R)

Power

Power supply

100-240V~ 50/60Hz

Power consumption

Max-142 W

Power consumption

Sleep mode-≤0.5W

Operating condition

Temperature

0℃ - 40℃

Humidity

10% - 80%

SHOW LESS SPEC specs_btn

Display Panel

Size

55''

Resolution

3840 x 2160 (16:9)

Brightness

700 nit

Orientation

Landscape & Portrait

Contrast Ratio

1300:1

Response Time

9 ms

Active Display Area (H x V)

1209.6×680.4

Color Gamut

-

Life Time

30,000 Hours

MainBoard

OS

Android 9.0

CPU

T972-SR Quad-Core A55 1.9GHz

GPU

Mali-G31 MP2 GPU

Memory

2GB

Storage

8GB

OPS Slot

N/A

Connectivity & Sound

Input

Video-HDMI x 3

Input

USB 2.0 x 2

Output

-

Output

-

WiFi & BT

2.4G802.11b/g/n/ac

External Control

Ethernet RJ45 IN (10M/100M)

Speaker

Build-in Speaker 2×2W 4Ω

Touch

Type

N/A

Glass

N/A

Touch Point

N/A

Touch Response Time

N/A

Touch Precision

N/A

Mechanical Specification

Dimension (mm)

Set-1232×708.9×50.2

Dimension (mm)

Package-815.4×1365×186

Weight (kg)

Set-19.45

Weight (kg)

Package-24.6

VESA mount

200×400

Bezel Width (mm)

11.2(T/L/R); 17.3(B)

Power

Power supply

100-240V~ 50/60Hz

Power consumption

Max-140W

Power consumption

Sleep mode-≤0.5W

Operating condition

Temperature

0℃ - 40℃

Humidity

10% - 80%

SHOW LESS SPEC specs_btn
